It is responsible for producing unidirectional or DC current at the load by conducting a set of diodes for every half cycle of the input signal. Since the output after the diode bridge rectifiers is of pulsating nature, and for producing it as a pure DC, filtering is necessary.

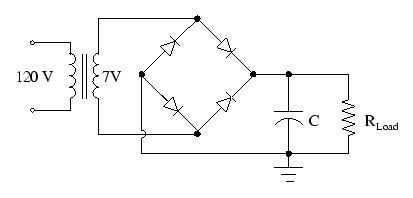

Filtering is normally performed with one or more capacitors attached across the load, as you can observe in the below figure wherein smoothing of wave is performed. This capacitor rating also depends on the output voltage. The last stage of this regulated DC supply is a voltage regulator that maintains the output voltage to a constant level.

Suppose the microcontroller works at 5V DC, but the output after the bridge rectifier is around 16V, so to reduce this voltage, and to maintain a constant level — no matter voltage changes in input side — a voltage regulator is necessary.

As we discussed above, a single-phase bridge rectifier consists of four diodes and this configuration is connected across the load. When the voltage, more than the threshold level of the diodes D1 and D2, starts conducting — the load current starts flowing through it, as shown as red lines path in the diagram below. During the negative half cycle of the input AC waveform, the diodes D3 and D4 are forward biased, and D1 and D2 are reverse biased.

From the depth of my heart I express my deep sincere gratitude

Load current starts flowing through the D3 and D4 diodes when these diodes starts conducting as shown in the figure. We can observe that in both the cases, the load current direction is same, i. Thus, by the usage of a bridge rectifier, the input AC current is converted into a DC current. The output at the load with this bridge wave rectifier is pulsating in nature, but for producing a pure DC requires additional filter like capacitor.

The same operation is applicable for different bridge rectifiers, but in case of controlled rectifiers thyristors triggering is necessary to drive the current to load.

This is all about the bridge rectifier theory its types, circuit and working principles. We appreciate you for your keen attention and focus on this article.

And therefore, please do write to us for choosing required component ratings in this bridge rectifier for your application and for any other technical guidance. Hi Suraj Thank you so much for your feedback And once again please visit our domestic website https: And once again please visit our domestic website https: Hi Raguvaran please visit our domestic website https: Hi Dips Thanks for your compliment And once again please visit our domestic website https: This means higher output voltage, Higher transformer utilization factor TUF and higher output power.

A centre tap rectifier is always a difficult one to implement because of the special transformer involved.

A centre tapped transformer is costly as well. A center tap full wave rectifier needs only 2 diodes whereas a bridge rectifier needs 4 diodes.

But silicon diodes being cheaper than a center tap transformer, a bridge rectifier is much-preferred solution in a DC power supply. A bridge rectifier can be constructed with or without a transformer. This luxury is not available in a center tap rectifier.

Here the design of rectifier is dependent on the center tap transformer, which can not be replaced. Bridge rectifier is suited for high voltage applications.

Full Wave Bridge Rectifier Class12

The reason is the high peak inverse voltage PIV of bridge rectifier when compared to the PIV of a center tap rectifier. Transformer utilization factor TUF is higher for bridge rectifier.

In a bridge rectifier, 2 diodes conduct simultaneously on a half cycle of input.

A center tap rectifier has only 1 diode conducting on one-half cycle. This increases the net voltage drop across diodes in a bridge rectifier it is double to the value of center tap.

Applications of Full wave Bridge rectifier Full wave rectifier finds uses in the construction of constant dc voltage power supplies, especially in general power supplies.

However, for an audio application, a general power supply may not be enough. This is because of the residual ripple factor in a bridge rectifier. There are limitations to filtering ripples. For audio applications, specially built power supplies using IC regulators may be ideal.

The simple process of rectification produces a type of DC characterized by pulsating voltages and currents although still unidirectional. Depending upon the type of end-use, this type of DC current may then be further modified into the type of relatively constant voltage DC characteristically produced by such sources as batteries and solar cells. A diode bridge is an arrangement of four or more diodes in a bridge circuit configuration that provides the same polarity of output for either polarity of input.

Full Wave Bridge Rectifier

When used in its most common application, for conversion of an alternating current AC input into a direct current DC output, it is known as a bridge rectifier. A bridge rectifier provides full-wave rectification from a two-wire AC input, resulting in lower cost and weight as compared to a rectifier with a 3-wire input from a transformer with a center-tapped secondary winding.

Circuit Diagram:- Construction:The diodes labelled D1 to D2 are arranged in "series pairs" with only two diodes conducting current during each half cycle.

During the positive half cycle of the supply, diodes D1 and D4 conduct in series while diodes D2 and D3 are reverse biased and the current flows through the load as shown below.

Full Wave Bridge Rectifier:Half-wave rectification:In half wave rectification of a single-phase supply, either the positive or negative half of the AC wave is passed, while the other half is blocked. Because only one half of the input waveform reaches the output, mean voltage is lower. Half-wave rectification requires a single diode in a single-phase supply, or three in a three-phase supply. Rectifiers yield a unidirectional but pulsating direct current; half-wave rectifiers produce far more ripple than full-wave rectifiers, and much more filtering is needed to eliminate harmonics of the AC frequency from the output.

Full-wave rectification:A full-wave rectifier converts the whole of the input waveform to one of constant polarity positive or negative at its output.

Full Wave Bridge Rectifier

Full-wave rectification converts both polarities of the input waveform to DC direct current , and yields a higher mean output voltage. Two diodes and a center tapped transformer, or four diodes in a bridge configuration and any AC source including a transformer without center tap , are needed.

Single semiconductor diodes, double diodes with common cathode or common anode, and four-diode bridges, are manufactured as single components. Bridge rectifier: A full-wave rectifier using 4 diodes.

You might also like: HARRY POTTER PDF FREE FULL

For single-phase AC, if the transformer is center-tapped, then two diodes back-to-back cathode-to-cathode or anode-to-anode, depending upon output polarity required can form a full-wave rectifier. Twice as many turns are required on the transformer secondary to obtain the same output voltage than for a bridge rectifier, but the power rating is unchanged.Hence during this cycle diodes D2 and D3 are forward biased.

Configuration results in each diode conducting in turn when its anode terminal is positive with respect to the transformer center point C produces an output during both half-cycles. Bridge Rectifiers are widely used in power supplies that provide necessary DC voltage for the electronic components or devices. The load R Load is connected to bridge through points 2 and 4. This method may be suitable for low power applications , but not for applications which need a steady and smooth DC supply.
